Yuan-Yuan Yang, Yuan-Yuan Liu, Man-Lang Cheng, Nian-Wei Dai, Min Sun, Jin Li, Yi-Ming Jiang. Enhancements of Passive Film and Pitting Resistance in Chloride Solution for 316LX Austenitic Stainless Steel After Sn Alloying[J]. Acta Metallurgica Sinica (English Letters), 2019, 32(1): 98-106.
| Material | C | Si | Mn | S | P | Cr | Ni | Cu | Mo | N | Sn | Fe |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 316L-0Sn | 0.027 | 0.49 | 1.37 | 0.004 | 0.009 | 16.20 | 10.19 | 0.17 | 2.11 | 0.024 | - | Bal. |
| 316L-0.062Sn | 0.024 | 0.51 | 1.33 | 0.005 | 0.009 | 16.49 | 9.90 | 0.19 | 2.06 | 0.030 | 0.062 | Bal. |
| 316L-0.21Sn | 0.022 | 0.45 | 1.36 | 0.003 | 0.009 | 16.33 | 10.05 | 0.19 | 2.07 | 0.026 | 0.21 | Bal. |
Table 1 Chemical compositions of 316LX ASS with different Sn addition (wt%)
| Material | C | Si | Mn | S | P | Cr | Ni | Cu | Mo | N | Sn | Fe |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 316L-0Sn | 0.027 | 0.49 | 1.37 | 0.004 | 0.009 | 16.20 | 10.19 | 0.17 | 2.11 | 0.024 | - | Bal. |
| 316L-0.062Sn | 0.024 | 0.51 | 1.33 | 0.005 | 0.009 | 16.49 | 9.90 | 0.19 | 2.06 | 0.030 | 0.062 | Bal. |
| 316L-0.21Sn | 0.022 | 0.45 | 1.36 | 0.003 | 0.009 | 16.33 | 10.05 | 0.19 | 2.07 | 0.026 | 0.21 | Bal. |
Fig. 1 a Typical current density curves for 316LX specimens in 1 mol/L NaCl solution, b derived CPT values with error bars for 316LX specimens with different Sn contents

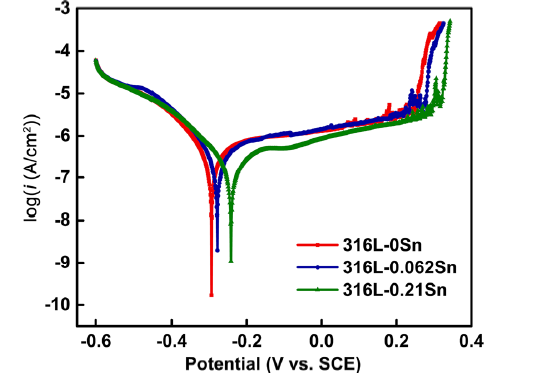

Fig. 2 Potentiodynamic polarization curves for 316LX samples in 1 mol/L NaCl solution (i current density)

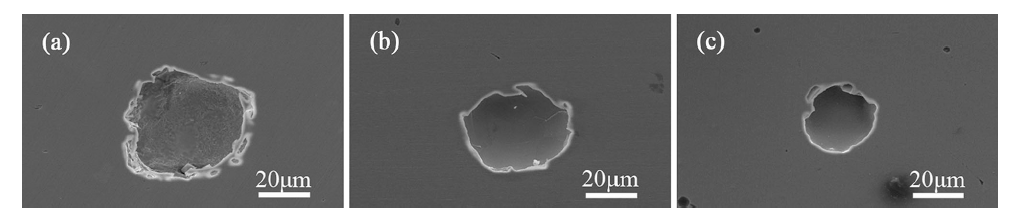

Fig. 3 Surface morphologies of pits on 316LX samples after potentiodynamic polarization test in 1 mol/L NaCl solution: a 316L-0Sn; b 316L-0.062Sn; c 316L-0.21Sn

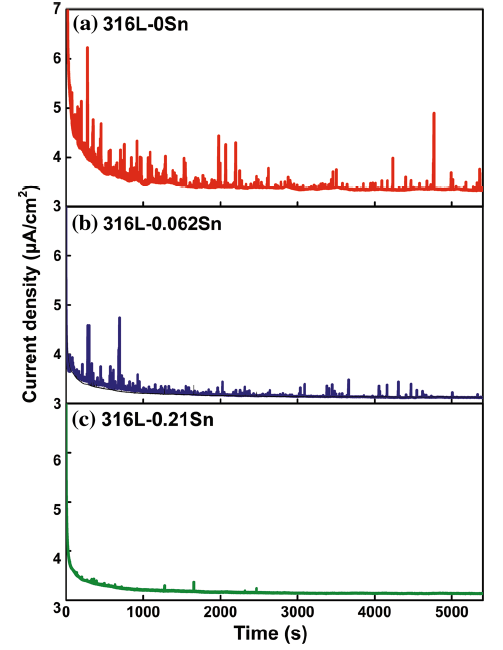

Fig. 4 Current density curves versus elapsed time of 316LX samples in 1 mol/L NaCl solution at 100 mVSCE

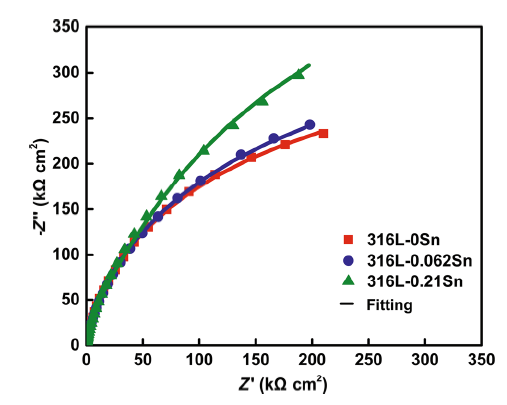

Fig. 5 Nyquist plots of 316LX samples in 1 mol/L NaCl solution (Z’ real part of impedance; Z’’ imaginary part of impedance)
Fig. 6 Bode plots of 316LX samples in 1 mol/L NaCl solution (f frequency; Z impedance)

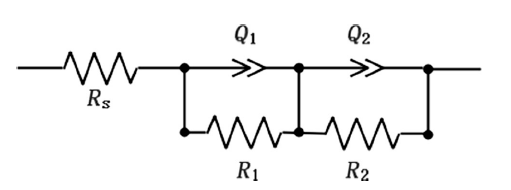

Fig. 7 Equivalent electric circuit model for interpretation of impedance spectra of 316LX samples in 1 mol/L NaCl solution
| Material | Rs (Ω cm2) | Q1 (Ω-1 cm-2 s-n) | n 1 | R1 (Ω cm2) | Q2 (Ω-1 cm-2 s-n) | n 2 | R2 (Ω cm2) | Rp (Ω cm2) |
|---|---|---|---|---|---|---|---|---|
| 316L-0Sn | 11.46 | 4.389 × 10-5 | 0.88 | 5.707 × 105 | 8.084 × 10-5 | 1 | 1.135 × 105 | 6.842 × 105 |
| 316L-0.062Sn | 10.56 | 1.264 × 10-4 | 1 | 7.198 × 104 | 3.954 × 10-5 | 0.89 | 6.126 × 105 | 6.846 × 105 |
| 316L-0.21Sn | 9.574 | 1.394 × 10-4 | 1 | 2.012 × 104 | 3.059 × 10-5 | 0.909 | 9.314 × 105 | 9.515 × 105 |
Table 2 Fitted results of impedance data for 316LX ASS samples in 1 mol/L NaCl solution
| Material | Rs (Ω cm2) | Q1 (Ω-1 cm-2 s-n) | n 1 | R1 (Ω cm2) | Q2 (Ω-1 cm-2 s-n) | n 2 | R2 (Ω cm2) | Rp (Ω cm2) |
|---|---|---|---|---|---|---|---|---|
| 316L-0Sn | 11.46 | 4.389 × 10-5 | 0.88 | 5.707 × 105 | 8.084 × 10-5 | 1 | 1.135 × 105 | 6.842 × 105 |
| 316L-0.062Sn | 10.56 | 1.264 × 10-4 | 1 | 7.198 × 104 | 3.954 × 10-5 | 0.89 | 6.126 × 105 | 6.846 × 105 |
| 316L-0.21Sn | 9.574 | 1.394 × 10-4 | 1 | 2.012 × 104 | 3.059 × 10-5 | 0.909 | 9.314 × 105 | 9.515 × 105 |

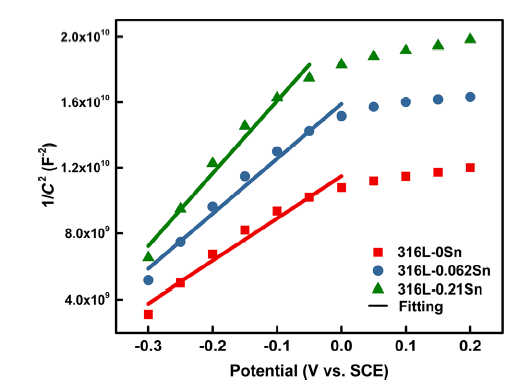

Fig. 8 Mott-Schottky plots of passive films on 316LX samples surface in 1 mol/L NaCl solution
| Material | Nd (cm-3) | Efb (V) | Lss (nm) |
|---|---|---|---|
| 316L-0Sn | 5.50 × 1020 | - 0.4460 | 1.183 |
| 316L-0.062Sn | 4.22 × 1020 | - 0.4740 | 1.392 |
| 316L-0.21Sn | 3.20 × 1020 | - 0.490 | 5.142 |
Table 3 Semi-conductive parameters derived from Mott-Schottky plots for passive films obtained at 0 VSCE in 1 mol/L NaCl solution
| Material | Nd (cm-3) | Efb (V) | Lss (nm) |
|---|---|---|---|
| 316L-0Sn | 5.50 × 1020 | - 0.4460 | 1.183 |
| 316L-0.062Sn | 4.22 × 1020 | - 0.4740 | 1.392 |
| 316L-0.21Sn | 3.20 × 1020 | - 0.490 | 5.142 |

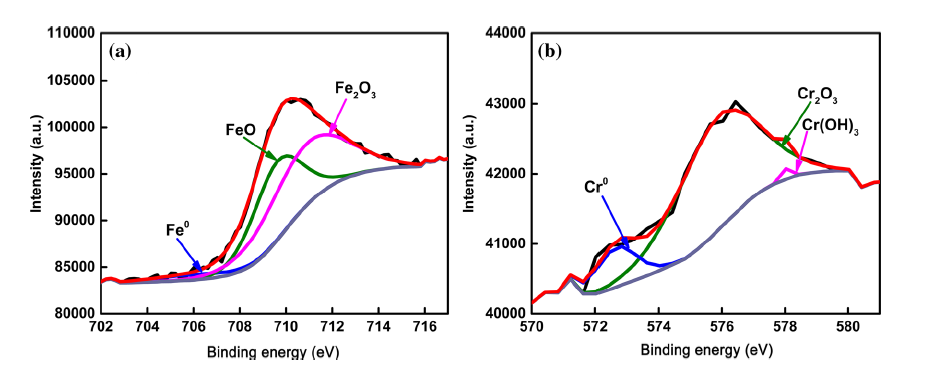

Fig. 9 XPS peak analysis for passive films on 316L-0 ASS in 1 mol/L NaCl solution: a Fe 2p3/2 spectra; b Cr 2p3/2 spectra
Fig. 10 XPS peak analysis for passive films on 316L-0.21Sn ASS in 1 mol/L NaCl solution: a Fe 2p3/2 spectra; b Cr 2p3/2 spectra; c Sn 3d3/2 spectra
| Material | O | Fe | Cr | Sn |
|---|---|---|---|---|
| 316L-0Sn | 64.98 | 30.49 | 4.53 | - |
| 316L-0.21Sn | 67.10 | 14.85 | 12.01 | 6.04 |
Table 4 The derived composition data from XPS spectra for the 316L-0Sn and 316L-0.21Sn ASS samples (at%; the total atomic amounts of Cr, Fe, Sn and O elements have been set to 100 at%)
| Material | O | Fe | Cr | Sn |
|---|---|---|---|---|
| 316L-0Sn | 64.98 | 30.49 | 4.53 | - |
| 316L-0.21Sn | 67.10 | 14.85 | 12.01 | 6.04 |
|
