Microstructure and Mechanical Behavior of FeNiCoCr and FeNiCoCrMn High-Entropy Alloys Fabricated by Powder Metallurgy

doi:10.1007/s40195-020-01150-9

Abstract

Abstract:

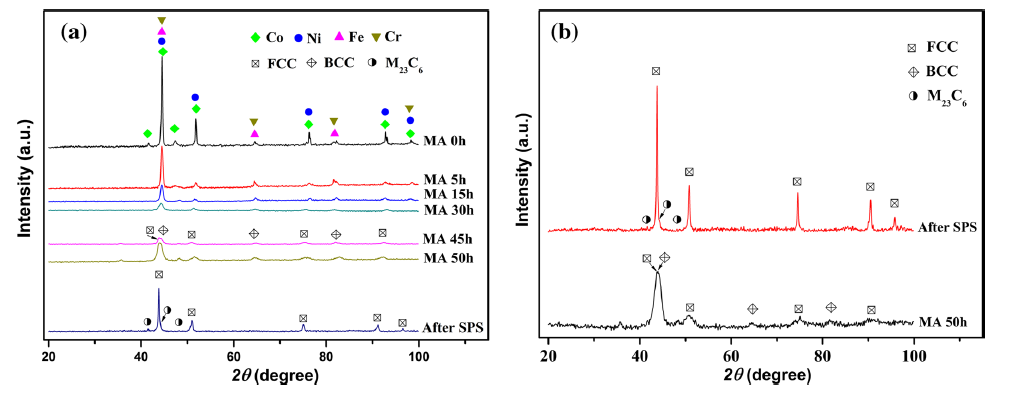

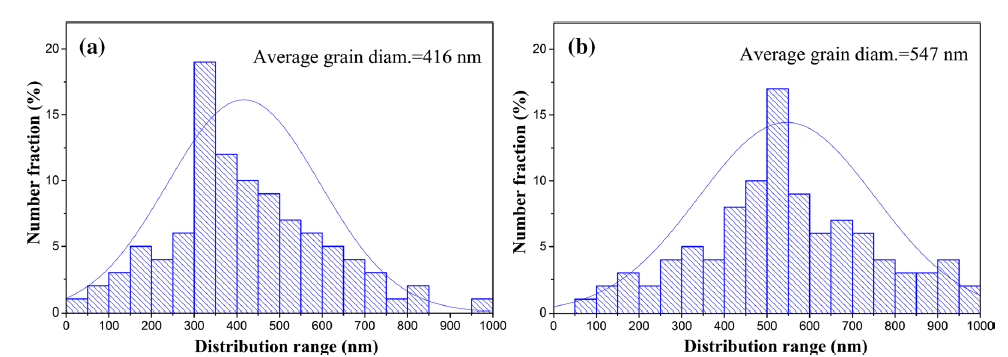

The present work reports a systematic investigation on phase evolution, microstructure and microstructure-property relationship of two typical face-centered cubic (FCC) structured high-entropy alloys (HEAs), FeNiCoCr and FeNiCoCrMn, prepared via mechanical alloying (MA) followed by spark plasma sintering (SPS). Following 50 h of MA, the two HEAs consisted of a mixture of FCC and body-centered cubic phases. Following SPS, the bulk FeNiCoCr alloy showed a primary FCC phase with a small amount of Cr₂₃C₆ and Cr₂O₃ contaminants, while the bulk FeNiCoCrMn alloy was composed of a primary FCC phase with some (Cr,Mn)₂₃C₆ and MnCr₂O₄ contaminants. The average grain size of the primary FCC phase in the bulk FeNiCoCr alloy was~416 nm, while that of the primary FCC phase in the bulk FeNiCoCrMn alloy was~547 nm. The yield strength, compressive strength and strain-to-failure of the bulk FeNiCoCr alloy are 1525 MPa, 1987 MPa and 24.4%, respectively, whereas those of the bulk FeNiCoCrMn alloy are 1329 MPa, 1761 MPa and 21.9%, respectively. It suggests that the bulk FeNiCoCrMn exhibited lower strength and plasticity in comparison with the bulk FeNiCoCr alloy. Clearly, the smaller grain size of the primary FCC phase in the FeNiCoCr alloy is mainly responsible for the better mechanical performance.

Key words: High-entropy alloy, Mechanical alloying, Microstructure, Strengthening, Contaminants

Chenliang Chu, Weiping Chen, Zhen Chen, Zhenfei Jiang, Hao Wang, Zhiqiang Fu. Microstructure and Mechanical Behavior of FeNiCoCr and FeNiCoCrMn High-Entropy Alloys Fabricated by Powder Metallurgy[J]. Acta Metallurgica Sinica (English Letters), 2021, 34(4): 445-454.

Figures/Tables 9

References 49

[1]	J.W. Yeh, S.K. Chen, S.J. Lin, J.Y. Gan, T.S. Chin, T.T. Shun, C.H. Tsau, S.Y. Chang, Adv. Eng. Mater. 6, 299 (2004)
[2]	W.R. Zhang, P.K. Liaw, Y. Zhang, Sci. China Mater. 61 2 (2018) DOI URL
[3]	D.B. Miracle, O.N. Senkov, Acta Mater. 122 448 (2017) DOI URL
[4]	L. Moravcikova-Gouvea, I. Moravcik, M. Omasta, J. Vesely, J. Cizek, P. Minarik, J. Cupera, A. Zadera, V. Jan, I. Dlouhy, Mater. Charact. 159 110046 (2020) DOI URL
[5]	C.G. Schön, M.A. Tunes, R. Arróyave, J. Ågren, CALPHAD: Comput. Coupling Phase Diagr. Thermochem. 68 101713 (2020)
[6]	Z.Q. Fu, W.P. Chen, H.M. Wen, D.L. Zhang, Z. Chen, B.L. Zheng, Y.Z. Zhou, E.J. Lavernia, Acta Mater. 107 59 (2016) DOI URL
[7]	S.Y. Chen, W.D. Li, X. Xie, J. Brechtl, B.L. Chen, P.Z. Li, G.F. Zhao, F.Q. Yang, J.W. Qiao, K.A. Dahmen, P.K. Liaw, J. Alloys Compd. 752 464 (2018)
[8]	W. Kai, F.P. Cheng, F.C. Chien, Y.R. Lin, D. Chen, J.J. Kai, C.T. Liu, C.J. Wang, Corros. Sci. 158 108093 (2019) DOI URL
[9]	N.A.P.K. Kumar, C. Li, K.J. Leonard, H. Bei, S.J. Zinkle, Acta Mater. 113 230 (2016) DOI URL
[10]	Z. Li, S. Zhao, S.M. Alotaibi, Y. Liu, B. Wang, M.A. Meyers, Acta Mater. 151 424 (2018) DOI URL
[11]	T. Zuo, M. Zhang, P.K. Liaw, Y. Zhang, Intermetallics 100, 1 (2018)
[12]	B. Cantor, I.T.H. Chang, P. Knight, A.J.B. Vincent, Mater. Sci. Eng., A, 375 213 (2004)
[13]	M. Vaidya, K. Guruvidyathri, B.S. Murty, J. Alloys Compd. 774 856 (2019) DOI URL
[14]	M. Laurent-Brocq, A. Akhatova, L. Perrière, S. Chebini, X. Sauvage, E. Leroy, Y. Champion, Acta Mater. 88 355 (2015)
[15]	B. Gludovatz, A. Hohenwarter, D. Catoor, E.H. Chang, E.P. George, R.O. Ritchie, Science, 345 1153 (2014) URL PMID
[16]	M. Naeem, H.Y. He, F. Zhang, H.L. Huang, S. Harjo, T. Kawasaki, B. Wang, S. Lan, Z.D. Wu, F. Wang, Y. Wu, Z.P. Lu, Z.W. Zhang, C.T. Liu, X.L. Wang, Sci. Adv. 6 4002 (2020)
[17]	G.A. Salishchev, M.A. Tikhonovsky, D.G. Shaysultanov, N.D. Stepanov, A.V. Kuznetsov, I.V. Kolodiy, A.S. Tortika, O.N. Senkov, J. Alloys Compd. 591 11 (2014)
[18]	B.S. Murty, S. Ranganathan, Int. Mater. Rev. 43 101 (1998)
[19]	A.S. Sharma, S. Yadav, K. Biswas, B. Basu, Mater. Sci. Eng., R 131, 1 (2018)
[20]	Z.F. Jiang, W.P. Chen, Z.B. Xia, W. Xiong, Z.Q. Fu, Intermetallics 108, 45 (2019) DOI URL
[21]	Y.H. Guo, M.Y. Li, P. Li, C.G. Chen, Q. Zhan, Y.Q. Chang, Y.W. Zhang, J. Alloys Compd. 820 153104 (2020)
[22]	P. Sathiyamoorthi, J. Basu, S. Kashyap, K.G. Pradeep, R.S. Kottada, Mater. Des. 134 426 (2017) DOI URL
[23]	M. Vaidya, A. Anupam, J.V. Bharadwaj, C. Srivastava, B.S. Murty, J. Alloys Compd. 791 1114 (2019)
[24]	Z.Q. Fu, W.P. Chen, S.C. Fang, X.M. Li, Mater. Sci. Eng., A 597, 204 (2014)
[25]	Y. Zhang, T.T. Zuo, Z. Tang, M.C. Gao, K.A. Dahmen, P.K. Liaw, Z.P. Lu, Prog. Mater Sci. 61 1 (2014) DOI URL
[26]	K.B. Zhang, Z.Y. Fu, J.Y. Zhang, J. Shi, W.M. Wang, H. Wang, Y.C. Wang, Q.J. Zhang, J. Alloys Compd. 485 L31 (2009)
[27]	S. Praveen, B.S. Murty, R.S. Kottada, JOM 65, 1797 (2013)
[28]	T.T. Shun, Y.C. Du, J. Alloys Compd. 478 269 (2009) DOI URL
[29]	S.C. Fang, W.P. Chen, Z.Q. Fu, Mater. Des. 54 973 (2014) DOI URL
[30]	J.Y. Pang, T. Xiong, X. Wei, Z.W. Zhu, B. Zhang, Y.T. Zhou, X.H. Shao, Q.Q. Jin, S.J. Zheng, X.L. Ma, Materialia 6, 100275 (2019)
[31]	F. Otto, A. Dlouhý, C. Somsen, H. Bei, G. Eggeler, E.P. George, Acta Mater. 61 5743 (2013) DOI URL PMID
[32]	A.J. Zaddach, C. Niu, C.C. Koch, D.L. Irving, JOM 65, 1780 (2013)
[33]	Z.Q. Fu, W.P. Chen, S.C. Fang, D.Y. Zhang, H.Q. Xiao, D.Z. Zhu, J. Alloys Compd. 553 316 (2013) DOI URL
[34]	A. Takeuchi, A. Inoue, Mater. Trans. 46 2817 (2005)
[35]	S.R. Shatynski, Oxid. Met. 13 105 (1979)
[36]	J.O. Andersson, CALPHAD: Comput. Coupling Phase Diagr. Thermochem. 11 271 (1987)
[37]	W. Kai, C.C. Li, F.P. Cheng, K.P. Chu, R.T. Huang, L.W. Tsay, J.J. Kai, Corros. Sci. 108 209 (2016)
[38]	M. Vaidya, S. Trubel, B.S. Murty, G. Wilde, S.V. Divinski, J. Alloys Compd. 688 994 (2016)
[39]	B. Jia, X.J. Liu, H. Wang, Y. Wu, Z.P. Lu, Sci. China: Technol. Sci. 61 179 (2018)
[40]	Y. Liu, J.S. Wang, Q.H. Fang, B. Liu, Y. Wu, S.Q. Chen, Intermetallics 68, 16 (2016)
[41]	M.V. Klimova, D.G. Shaysultanov, S.V. Zherebtsov, N.D. Stepanov, Mater. Sci. Eng., A 748, 228 (2019)
[42]	M. Vaidya, K.G. Pradeep, B.S. Murty, G. Wilde, S.V. Divinski, Sci. Rep. 7 12293 (2017) URL PMID
[43]	S. Praveen, J. Basu, S. Kashyap, R.S. Kottada, J. Alloys Compd. 662 361 (2016)
[44]	K.B. Alexander, P.F. Becher, S.B. Waters, A. Bleier, J. Am. Ceram. Soc. 77 939 (1994) DOI URL
[45]	N.D. Stepanov, D.G. Shaysultanov, R.S. Chernichenko, D.M. Ikornikov, V.N. Sanin, Mater. Sci. Eng., A 728, 54 (2018)
[46]	N.D. Stepanov, D.G. Shaysultanov, R.S. Chernichenko, M.A. Tikhonovsky, S.V. Zherebtsov, J. Alloys Compd. 770 194 (2019)
[47]	J.A. Peng, Z.Y. Li, L.M. Fu, X.B. Ji, Z.R. Pang, A.D. Shan, J. Alloys Compd. 803 491 (2019) DOI URL
[48]	B. Liu, J.S. Wang, Y. Liu, Q.H. Fang, Y. Wu, S.Q. Chen, C.T. Liu, Intermetallics 75, 25 (2016) DOI URL
[49]	Z.G. Wu, Y.F. Gao, H.B. Bei, Acta Mater. 120 108 (2016)

Alloys	Regions	Fe	Ni	Co	Cr	Mn	C	O
FeNiCoCr	Nominal composition	25	25	25	25	-	-	-
	FCC (A)	25.4±0.8	27.0±1.1	27.7±0.9	19.9±0.8	-	-	-
	Carbide phase (B)	8.8±0.3	4.5±1.3	5.8±1.1	62±3.6	-	18.8±2.6	-
	Oxide phase (C)	2.1±1.1	2.5±1.3	2.6±1.5	34.1±5.9	-	-	58.7±4.8
FeNiCoCrMn	Nominal composition	20	20	20	20	20	-	-
	FCC (D)	21.9±0.8	21.0±1.1	20.8±0.9	16.2±1.1	20.1±1.3	-	-
	Carbide phase (E)	3.2±0.2	1.2±0.1	1.8±0.1	43.7±2.6	30.8±1.2	19.3±3.1	-
	Oxide phase (F)	1.0±0.2	0.7±0.3	0.5±0.2	19.9±5.5	14.4±3.2	-	63.5±6.2

Alloys	Regions	Fe	Ni	Co	Cr	Mn	C	O
FeNiCoCr	Nominal composition	25	25	25	25	-	-	-
	FCC (A)	25.4±0.8	27.0±1.1	27.7±0.9	19.9±0.8	-	-	-
	Carbide phase (B)	8.8±0.3	4.5±1.3	5.8±1.1	62±3.6	-	18.8±2.6	-
	Oxide phase (C)	2.1±1.1	2.5±1.3	2.6±1.5	34.1±5.9	-	-	58.7±4.8
FeNiCoCrMn	Nominal composition	20	20	20	20	20	-	-
	FCC (D)	21.9±0.8	21.0±1.1	20.8±0.9	16.2±1.1	20.1±1.3	-	-
	Carbide phase (E)	3.2±0.2	1.2±0.1	1.8±0.1	43.7±2.6	30.8±1.2	19.3±3.1	-
	Oxide phase (F)	1.0±0.2	0.7±0.3	0.5±0.2	19.9±5.5	14.4±3.2	-	63.5±6.2

Element (atomic radii, Å)	C	Fe	Ni	Co	Cr	Mn
C (0.77)	-	-50	-39	-42	-61	-66
Fe (1.27)	-	-	-2	-1	-1	0
Ni (1.25)	-	-	-	0	-7	-8
Co (1.26)	-	-	-	-	-4	-5
Cr (1.28)	-	-	-	-	-	2
Mn (1.29)	-	-	-	-	-	-

Element (atomic radii, Å)	C	Fe	Ni	Co	Cr	Mn
C (0.77)	-	-50	-39	-42	-61	-66
Fe (1.27)	-	-	-2	-1	-1	0
Ni (1.25)	-	-	-	0	-7	-8
Co (1.26)	-	-	-	-	-4	-5
Cr (1.28)	-	-	-	-	-	2
Mn (1.29)	-	-	-	-	-	-

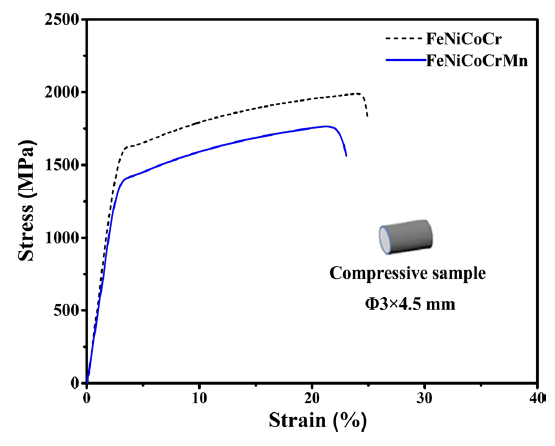

Alloys	Process	σ_0.2 (MPa)	σ_max (MPa)	ε_f (%)	Hardness (H_V)	References
FeNiCoCr	MA and SPS	1525	1987	24.4	465	This work
FeNiCoCrMn	MA and SPS	1329	1761	21.9	407	This work
FeNiCoCr	MA and SPS	657	-	> 50	-	[39]
FeNiCoCrMn	MA and SPS	700^a	762^a	9.8^a	314	[40]
FeNiCoCr	Arc-melting and casting	140^a	488^a	83^a	160	[17]
FeNiCoCrMn	Arc-melting and casting	215^a	491^a	71^a	170	[17]
