Effect of Pulse and Direct Current Electrodeposition on Microstructure, Surface, and Scratch Resistance Properties of Ni-W Alloy and Ni-W-SiC Composite Coatings

doi:10.1007/s40195-020-01098-w

Abstract

Abstract:

The present work aims to study the influence of direct current and pulse current techniques as well as embedded SiC nanoparticles on the mechanical properties of the electrodeposited Ni-W coating. The electrodeposited coatings were studied for morphological, microstructural, mechanical, and scratch resistance properties using the surface roughness tester, scanning electron microscopy, energy-dispersive X-ray spectroscopy, X-ray diffraction, Vickers microhardness, and scratch tester. Application of pulse current exhibited relatively homogeneous and smooth surface of the coatings. A remarkable increment of microhardness was observed in both Ni-W and Ni-W-SiC coatings prepared under pulse current as compared to the direct current technique. Similarly, the scratch test revealed a considerable improvement in the scratch resistance behavior of the Ni-W alloy and the composite coatings from the pulsed current condition. Hence, the application of pulse current not only improved the surface- and microstructure-related properties but also enhanced the Vickers microhardness and scratch resistance properties of the coatings. In addition, the reduction in micro-cracks revealed the improvement in scratch resistance properties of the coatings due to the incorporated SiC nanoparticles into the Ni-W alloy matrix.

Key words: Ni-W-SiC composite, Surface, Microstructure, Microhardness, Scratch resistance

Sami Bin Humam, Gobinda Gyawali, Dhani Ram Dhakal, Jin-Hyuk Choi, Soo Wohn Lee. Effect of Pulse and Direct Current Electrodeposition on Microstructure, Surface, and Scratch Resistance Properties of Ni-W Alloy and Ni-W-SiC Composite Coatings[J]. Acta Metallurgica Sinica (English Letters), 2020, 33(10): 1321-1330.

Figures/Tables 13

Table 1 Experimental bath formulation

Composition	Concentration	Purpose
NiSO₄·6H₂O (mol)	0.075	Ni source
Na₂WO₄·2H₂O (mol)	0.112	W source
Na₃C₆H₅O₇·H₂O (mol)	0.187	Complexing agent
NH₄Cl (mol)	0.5	Buffer
NaBr (mol)	0.6	Conductivity
SDS (g/L)	0.3	Surfactant
SiC particles (g/L)	0,20	Composite phase

Table 2 Electrodeposition conditions

Temperature (°C)	Electrodeposition time (min)	Current density (mA/cm²)	Stirring/agitation (rpm)	Anode	Cathode
65	60	80	180	Graphite	Copper

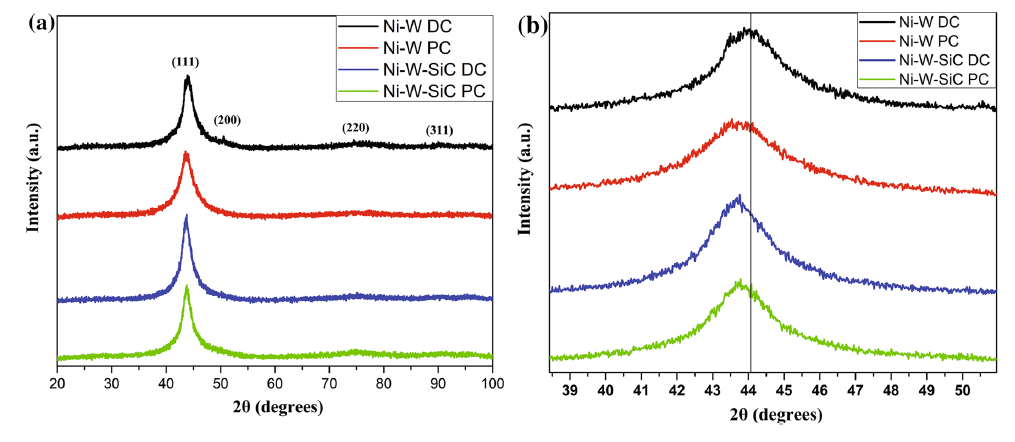

Fig. 1 XRD patterns of a Ni-W and Ni-W-SiC coatings, b corresponding higher magnification of (111) peak

Table 3 Grain size and lattice strain of Ni-W and Ni-W-SiC composite coatings

Samples	Grain size (nm)	Lattice strain (%)
Ni-W DC	12	0.0876
Ni-W PC	8.5	0.1185
Ni-W-SiC DC	9.2	0.1111
Ni-W-SiC PC	9.1	0. 1124

Fig. 2 SEM images of the surface morphologies of a Ni-W DC, c Ni-W PC coatings; b, d their corresponding higher-magnification images

Fig. 3 SEM images of the surface morphologies of a Ni-W-SiC DC, c Ni-W-SiC PC coatings; b, d their corresponding higher-magnification images

Table 4 Surface roughness profiles of Ni-W and Ni-W-SiC composite coatings

Samples	R_a (μm)	R_q (μm)	R_max (μm)
Ni-W DC	0.358	0.704	2.375
Ni-W PC	0.224	0.344	1.677
Ni-W-SiC DC	1.170	1.496	7.519
Ni-W-SiC PC	0.735	0.920	4.324

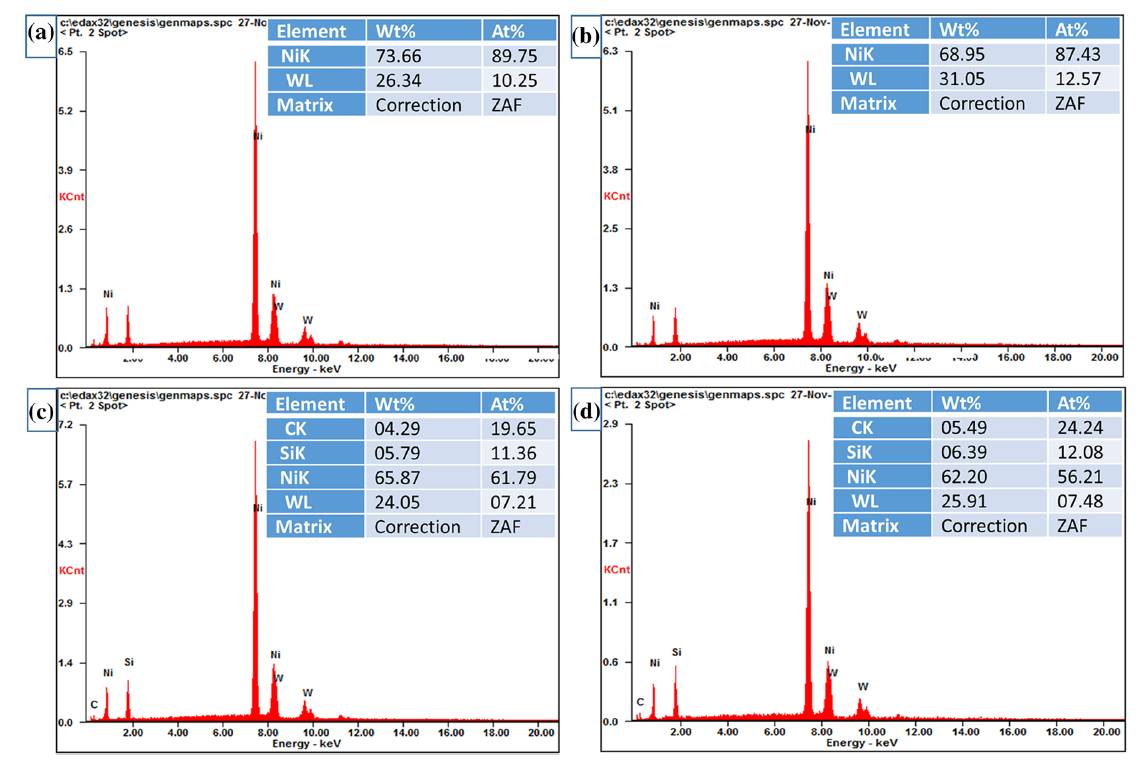

Fig. 4 EDS spectra of: a Ni-W DC, b Ni-W PC, c Ni-W-SiC DC, d Ni-W-SiC PC coatings

Fig. 5 SEM images of the cross sections of a Ni-W DC, b Ni-W PC, c Ni-W-SiC DC, d Ni-W-SiC PC coatings

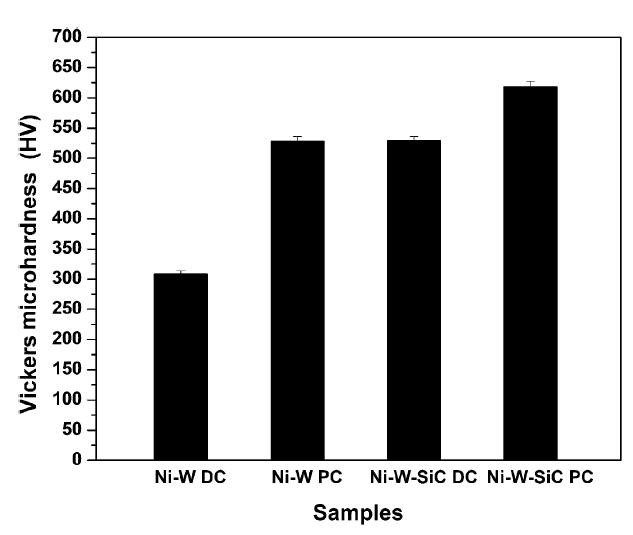

Fig. 6 Variation of Vickers microhardness of the coatings

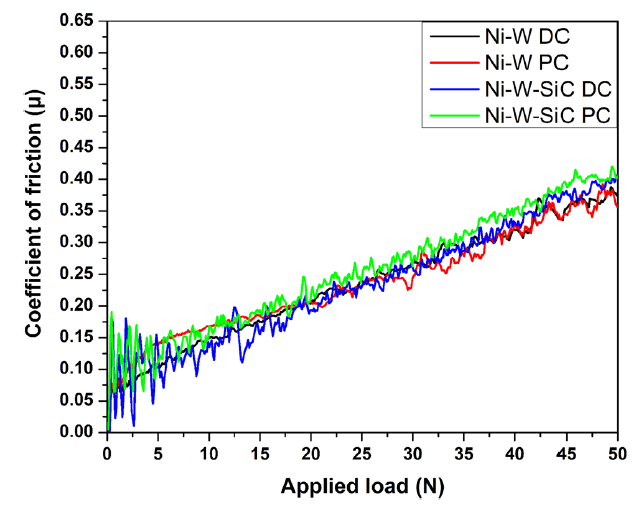

Fig. 7 Coefficient of friction obtained during the scratch test of Ni-W and Ni-W-SiC coatings

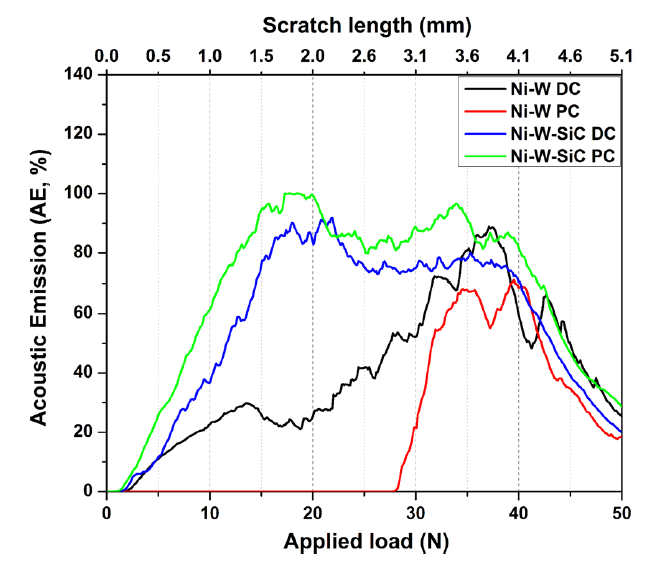

Fig. 8 Acoustic emission signals recorded during the scratch test of Ni-W and Ni-W-SiC coatings

Fig. 9 Collated SEM images of the worn surfaces of a Ni-W DC, b Ni-W PC, c Ni-W-SiC DC, d Ni-W-SiC PC coatings after scratch test

References 23

[1]	C.G. Fink, P.J.D. Prince, Trans. Am. Electrochem. Soc. 54, 315(1928)
[2]	G. Gyawali, B. Joshi, K. Tripathi, S.W. Lee, J. Mater. Eng. Perform. 26, 4462(2017)
[3]	E. Beltowska-lehman, P. Indyka, A. Bigos, M.J. Szczerba, M. Kot, Mater. Des. 80, 1(2015)
[4]	A. Genc, M. Lutfi Ovecoglu, M. Baydogan, S. Turan, Mater. Des. 42, 495(2012)
[5]	P. Indyka, E Beltowska-lehman, L. Tarkowski, A. Bigos, E. García-lecina, J. Alloys Compd. 590, 75(2014)
[6]	N.P. Wasekar, S.M. Latha, M. Ramakrishna, D.S. Rao, G. Sundararajan, Mater. Des. 112, 140(2016)
[7]	B. Li, W. Zhang, W. Zhang, Y. Huan, J. Alloys Compd. 702, 38(2017)
[8]	Y. Yao, S. Yao, L. Zhang, H. Wang, Mater. Lett. 61, 67(2007)
[9]	L. Tian, J. Xu, C. Qiang, Appl. Surf. Sci. 257, 4689(2011)
[10]	N. Spyrellis, E.A. Pavlatou, S. Spanou, A. Zoikis-karathanasis, Trans. Nonferrous Met. Soc. China 19, 800 (2009)
[11]	A.F. Zimmerman, D.G. Clark, K.T. Aust, U. Erb, Mater. Lett. 52, 85(2002)
[12]	P. Nowak, R.P. Socha, M. Kaisheva, J. Fransaer, J.P. Celis, Z. Stoinov, J. Appl. Electrochem. 30, 429(2000)
[13]	M.H. Allahyarzadeh, M. Aliofkhazraei, A.R. Rezvanian, V. Torabinejad, A.R. Sabour Rouhaghdam, Surf. Coat. Technol. 307, 978(2016)
[14]	K.A. Kumar, G.P. Kalaignan, V.S. Muralidharan, Ceram. Int. 39, 2827(2013)
[15]	O.S.A. Rahman, N.P. Wasekar, G. Sundararajan, A.K. Keshri Mater. Charact. 116, 1(2016)
[16]	G. Gyawali, B. Joshi, K. Tripathi, S.W. Lee, Ceram. Int. 42, 3497(2016)
[17]	G. Gyawali, S.H. Cho, D.J. Woo, S.W. Lee, Trans. Inst. Met. Finish. 90, 274(2012)
[18]	G. Gyawali, K. Tripathi, B. Joshi, S.W. Lee, J. Alloys Compd. 721, 757(2017)
[19]	M.F. Cardinal, P.A. Castro, J. Baxi, H. Liang, F.J. Williams, Surf. Coat. Technol. 204, 85(2009)
[20]	M.V.N. Vamsi, N.P. Wasekar, G. Sundararajan, Surf. Coat. Technol. 319, 403(2017)
[21]	J.H. Liu, Z.L. Pei, W.B. Shi, Y.D. Liu, J. Gong, C. Sun, Surf. Coat. Technol. 385, 125451(2020)
[22]	V.D. Papachristos, C.N. Panagopoulos, L.W. Christoffersen, A. Markaki, Thin Solid Films 396, 174 (2001)
[23]	F.C. Chang, M. Levy, R. Huie, M. Kane, P. Buckley, T.Z. Kattamis, G.R. Lakshminarayan, Surf. Coat. Technol. 49, 87(1991)
