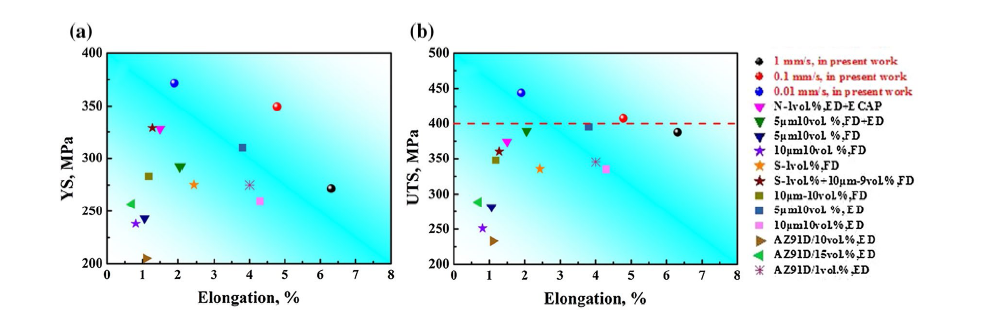

Fig. 1 Comparison of mechanical properties among SiCp/AZ91 composites extruded with different speeds and other AZ91 matrix composites reinforced with SiCp: a YS, b UTS.Reproduced from [67], with permission from Elsevier

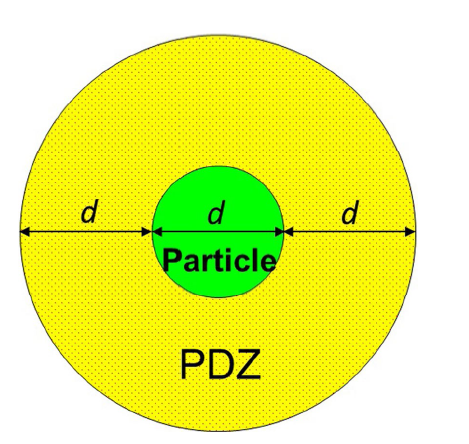

Fig. 2 Schematic of particle deformation zone (PDZ).Reproduced from [92], with permission from Elsevier

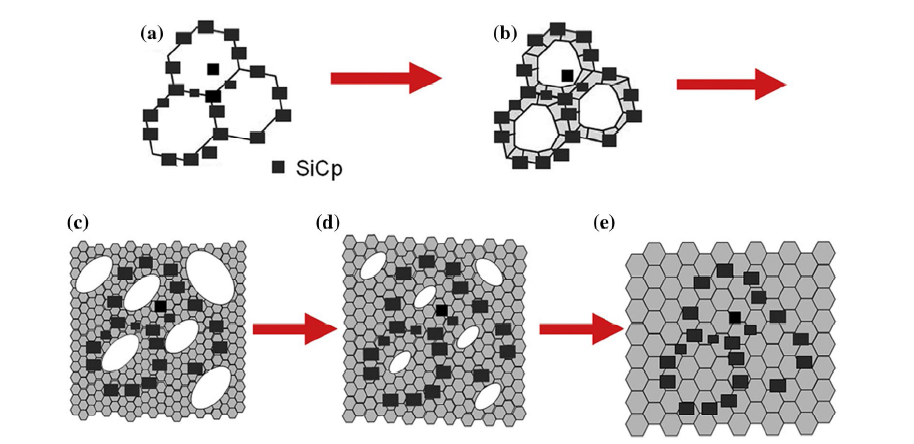

Fig. 3 Schematic diagram of the necklace DRX mechanism of Mg matrix composites with necklace-type particle distribution: a particles distribute along the grain boundaries; bPDZs are formed along grain boundaries; c DRX preferentially occurs along the initial grain boundaries due to PSN; d DRX extends from intergranular areas of initial grains to initial transgranular areas; e DRX is completed.Reproduced from [96], with permission from Elsevier

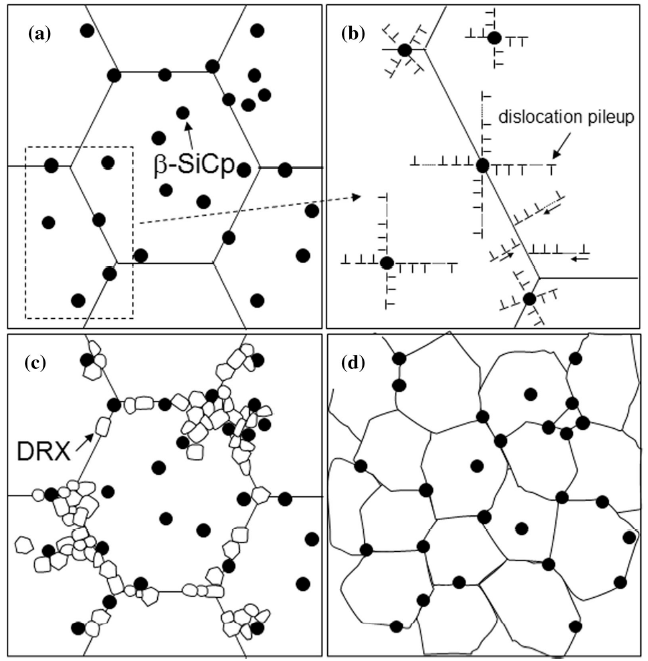

Fig. 4 Schematic illustration of DRX influenced by submicron SiCp during hot deformation: a microstructure before DRX, b high-density dislocations around submicron SiC particles, c DRX nucleation priority near submicron SiC particles and at grain boundaries, d microstructure after DRX. Reproduced from [101], with permission from Elsevier

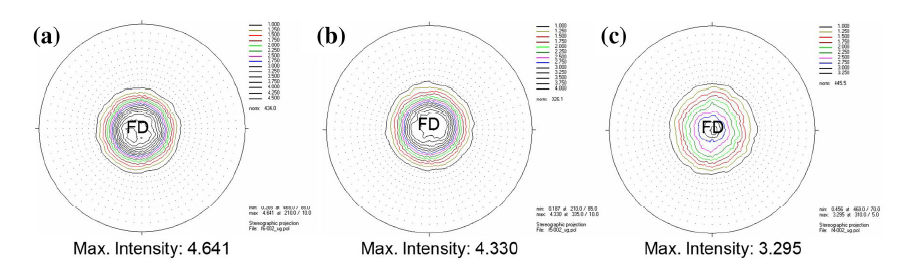

Fig. 5 Basal pole figures of the SiCp/AZ91 composite forged at a 320 °C, b 370 °C, c 420 °C. Reproduced from [56], with permission from Elsevier

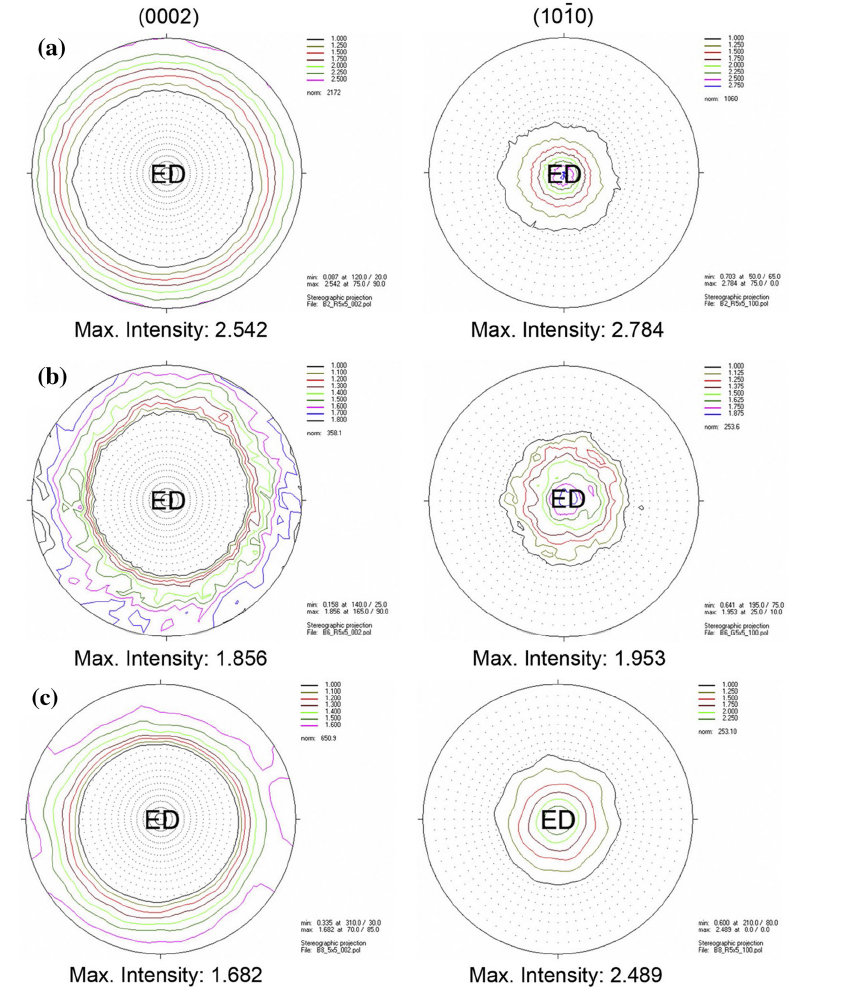

Fig. 6 Pole figures of the a AZ91 alloy, b 0.2 μm5%, c 10 μm5% SiCp/AZ91 composites after hot deformation. Reproduced from [92], with permission from Elsevier
